75 Ohm SMC Jack Connector Crimp/Solder
Attachment For RG180, RG195

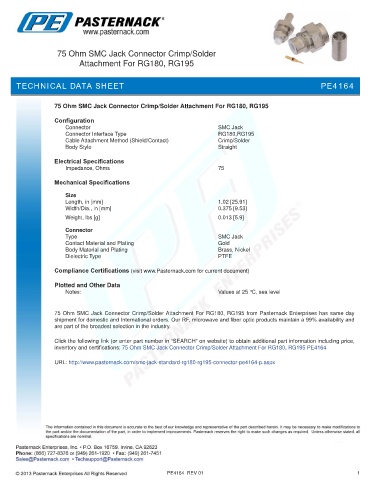

TECHNICAL DATA SHEET PE4164

75 Ohm SMC Jack Connector Crimp/Solder Attachment For RG180, RG195

Configuration
Connector SMC Jack
Connector Interface Type RG180,RG195
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.02 [25.91]
Width/Dia., in [mm] 0.375 [9.53]
.
Weight, lbs [g] 0.013 [5.9]

Connector
Type SMC Jack
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMC Jack Connector Crimp/Solder Attachment For RG180, RG195 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Jack Connector Crimp/Solder Attachment For RG180, RG195 PE4164

URL: http://www.pasternack.com/smc-jack-standard-rg180-rg195-connector-pe4164-p.aspx

PE4164 REV 01 1
