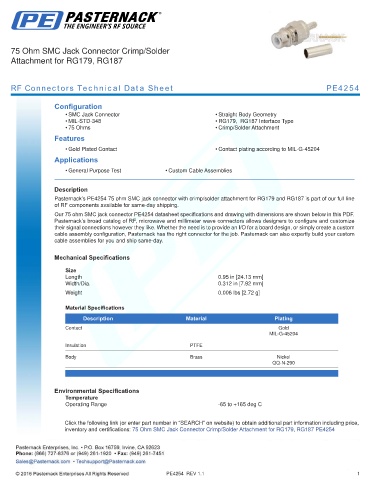

75 Ohm SMC Jack Connector Crimp/Solder
Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4254

Configuration
• SMC Jack Connector • Straight Body Geometry
• MIL-STD-348 • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4254 75 ohm SMC jack connector with crimp/solder attachment for RG179 and RG187 is part of our full line
of RF components available for same-day shipping.
Our 75 ohm SMC jack connector PE4254 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.95 in [24.13 mm]
Width/Dia. 0.312 in [7.92 mm]
.
Weight 0.006 lbs [2.72 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Jack Connector Crimp/Solder Attachment for RG179, RG187 PE4254

PE4254 REV 1.1 1
