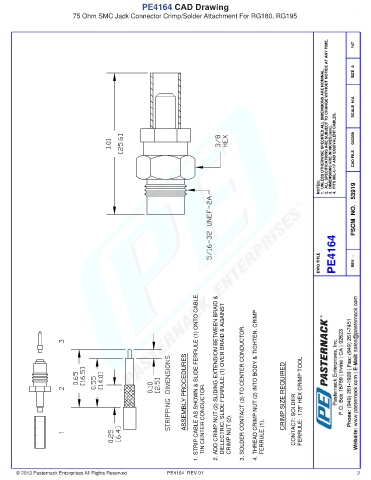

PE4164 CAD Drawing
75 Ohm SMC Jack Connector Crimp/Solder Attachment For RG180, RG195

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042309 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4164 REV. -

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN & SLIDE FERRULE (1) ONTO CABLE. TIN CENTER CONDUCTOR. 2. ADD CRIMP NUT (2) SLIDING EXTENSION BETWEEN BRAID & DIELECTRIC. SLIDE FERRULE (1) OVER BRAID & AGAINST 3. SOLDER CONTACT (3) TO CENTER CONDUCTOR. 4. THREAD CRIMP NUT (2) INTO BODY & TIGHTEN. CRIMP CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .178" HEX CRIMP TOOL
