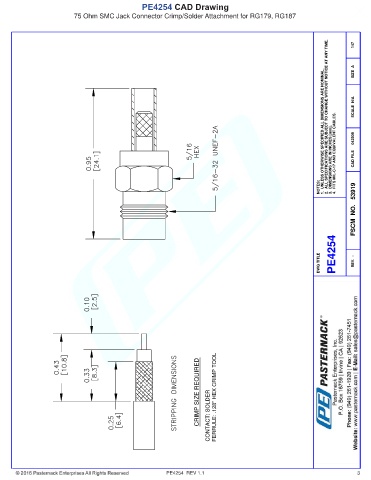

PE4254 CAD Drawing
75 Ohm SMC Jack Connector Crimp/Solder Attachment for RG179, RG187

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042309 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4254 REV. -

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .128" HEX CRIMP TOOL

PE4254 REV 1.1 3
