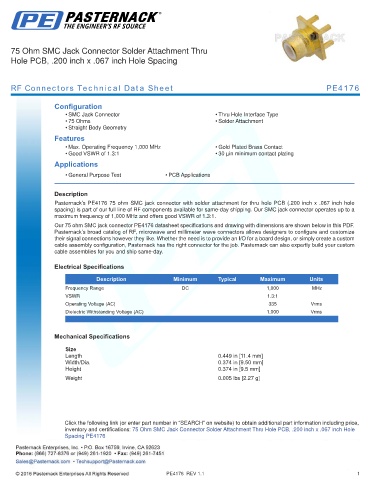

75 Ohm SMC Jack Connector Solder Attachment Thru
Hole PCB, .200 inch x .067 inch Hole Spacing

RF Connectors Technical Data Sheet PE4176

Configuration
• SMC Jack Connector • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE4176 75 ohm SMC jack connector with solder attachment for thru hole PCB (.200 inch x .067 inch hole
spacing) is part of our full line of RF components available for same-day shipping. Our SMC jack connector operates up to a
maximum frequency of 1,000 MHz and offers good VSWR of 1.3:1.
Our 75 ohm SMC jack connector PE4176 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 0.449 in [11.4 mm]
Width/Dia. 0.374 in [9.50 mm]
Height 0.374 in [9.5 mm]
.
Weight 0.005 lbs [2.27 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole
Spacing PE4176
