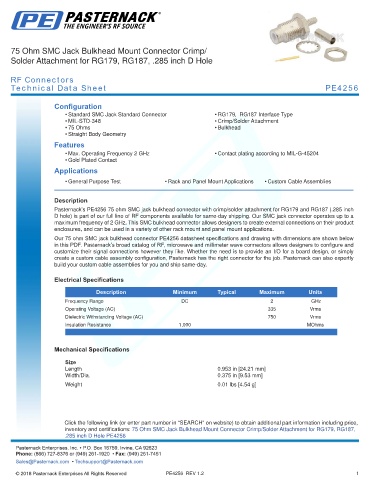

75 Ohm SMC Jack Bulkhead Mount Connector Crimp/
Solder Attachment for RG179, RG187, .285 inch D Hole

RF Connectors
Technical Data Sheet PE4256

Configuration
• Standard SMC Jack Standard Connector • RG179, RG187 Interface Type
• MIL-STD-348 • Crimp/Solder Attachment
• 75 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 2 GHz • Contact plating according to MIL-G-45204
• Gold Plated Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4256 75 ohm SMC jack bulkhead connector with crimp/solder attachment for RG179 and RG187 (.285 inch
D hole) is part of our full line of RF components available for same-day shipping. Our SMC jack connector operates up to a
maximum frequency of 2 GHz. This SMC bulkhead connector allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our 75 ohm SMC jack bulkhead connector PE4256 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 750 Vrms
Insulation Resistance 1,000 MOhms
.

Mechanical Specifications

Size
Length 0.953 in [24.21 mm]
Width/Dia. 0.375 in [9.53 mm]
.
Weight 0.01 lbs [4.54 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG179, RG187,
-
.285 inch D Hole PE4256 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4256 REV 1.2 1
