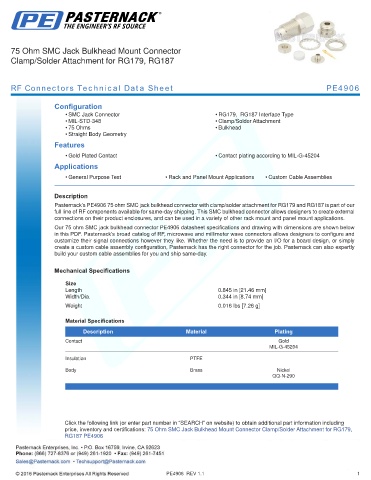

75 Ohm SMC Jack Bulkhead Mount Connector
Clamp/Solder Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4906

Configuration
• SMC Jack Connector • RG179, RG187 Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 75 Ohms • Bulkhead
• Straight Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4906 75 ohm SMC jack bulkhead connector with clamp/solder attachment for RG179 and RG187 is part of our
full line of RF components available for same-day shipping. This SMC bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our 75 ohm SMC jack bulkhead connector PE4906 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.845 in [21.46 mm]
Width/Dia. 0.344 in [8.74 mm]
.
Weight 0.016 lbs [7.26 g]
.
Material Specifications

Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm SMC Jack Bulkhead Mount Connector Clamp/Solder Attachment for RG179,
RG187 PE4906

PE4906 REV 1.1 1
