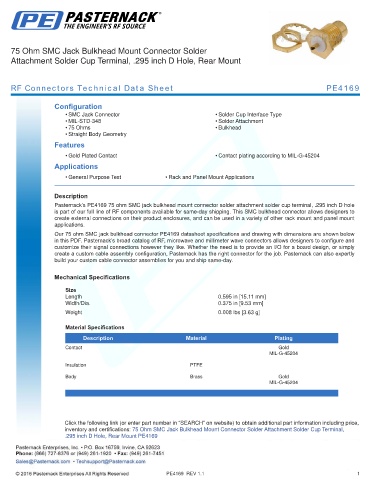

75 Ohm SMC Jack Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .295 inch D Hole, Rear Mount

RF Connectors Technical Data Sheet PE4169

Configuration
• SMC Jack Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 75 Ohms • Bulkhead
• Straight Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4169 75 ohm SMC jack bulkhead mount connector solder attachment solder cup terminal, .295 inch D hole
is part of our full line of RF components available for same-day shipping. This SMC bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our 75 ohm SMC jack bulkhead connector PE4169 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.595 in [15.11 mm]
Width/Dia. 0.375 in [9.53 mm]
.
Weight 0.008 lbs [3.63 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204

Insulation PTFE
Body Brass Gold
MIL-G-45204
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Jack Bulkhead Mount Connector Solder Attachment Solder Cup Terminal,
.295 inch D Hole, Rear Mount PE4169

PE4169 REV 1.1 1
