75 Ohm SMC Jack Bulkhead Connector Clamp/Solder
Attachment For RG180, RG195, .285 inch D Hole

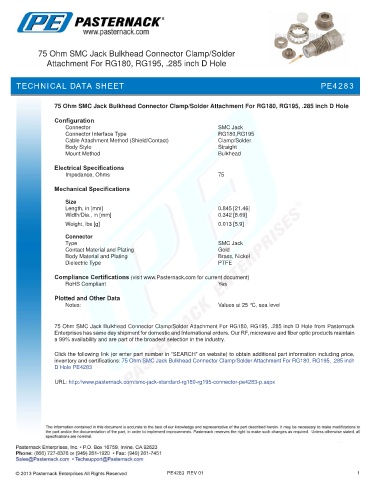

TECHNICAL DATA SHEET PE4283

75 Ohm SMC Jack Bulkhead Connector Clamp/Solder Attachment For RG180, RG195, .285 inch D Hole

Configuration
Connector SMC Jack
Connector Interface Type RG180,RG195
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.845 [21.46]
Width/Dia., in [mm] 0.342 [8.69]
.
Weight, lbs [g] 0.013 [5.9]
Connector
Type SMC Jack
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMC Jack Bulkhead Connector Clamp/Solder Attachment For RG180, RG195, .285 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Jack Bulkhead Connector Clamp/Solder Attachment For RG180, RG195, .285 inch
D Hole PE4283

URL: http://www.pasternack.com/smc-jack-standard-rg180-rg195-connector-pe4283-p.aspx

PE4283 REV 01 1
