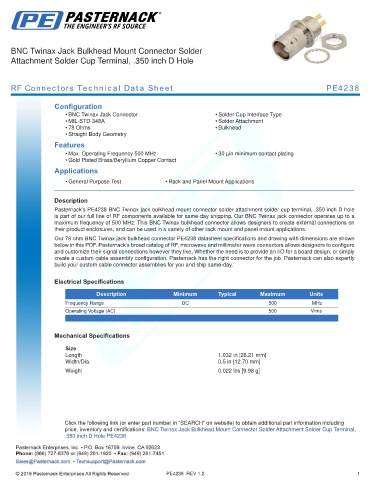

BNC Twinax Jack Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4238

Configuration
• BNC Twinax Jack Connector • Solder Cup Interface Type
• MIL-STD-348A • Solder Attachment
• 78 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 500 MHz • 30 µin minimum contact plating
• Gold Plated Brass/Beryllium Copper Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4238 BNC Twinax jack bulkhead mount connector solder attachment solder cup terminal, .350 inch D hole
is part of our full line of RF components available for same-day shipping. Our BNC Twinax jack connector operates up to a
maximum frequency of 500 MHz. This BNC Twinax bulkhead connector allows designers to create external connections on
their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our 78 ohm BNC Twinax jack bulkhead connector PE4238 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.032 in [26.21 mm]
Width/Dia. 0.5 in [12.70 mm]
.
Weight 0.022 lbs [9.98 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Twinax Jack Bulkhead Mount Connector Solder Attachment Solder Cup Terminal,
.350 inch D Hole PE4238

PE4238 REV 1.2 1
