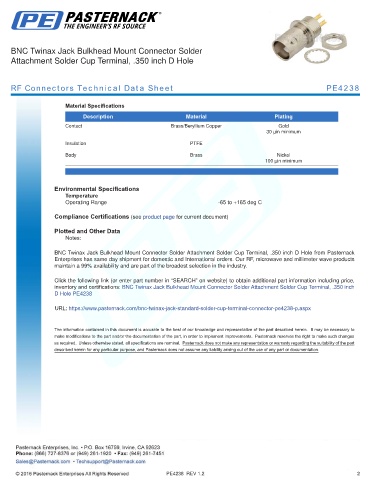

BNC Twinax Jack Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4238

Material Specifications
Description Material Plating
Contact Brass/Beryllium Copper Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

BNC Twinax Jack Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Jack Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .350 inch
D Hole PE4238

URL: https://www.pasternack.com/bnc-twinax-jack-standard-solder-cup-terminal-connector-pe4238-p.aspx

PE4238 REV 1.2 2
