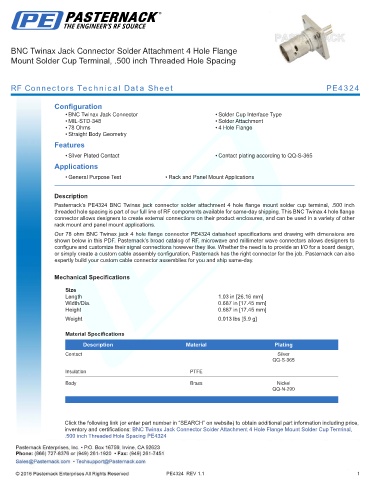

BNC Twinax Jack Connector Solder Attachment 4 Hole Flange
     Mount Solder Cup Terminal, .500 inch Threaded Hole Spacing




     RF Connectors Technical Data Sheet                                                                      PE4324


                   Configuration
                       • BNC Twinax Jack Connector                      • Solder Cup Interface Type
                       • MIL-STD-348                                    • Solder Attachment
                       • 78 Ohms                                        • 4 Hole Flange
                       • Straight Body Geometry
                   Features
                       • Silver Plated Contact                          • Contact plating according to QQ-S-365
                   Applications

                       • General Purpose Test           • Rack and Panel Mount Applications
                   .
                   Description
                   Pasternack’s PE4324 BNC Twinax jack connector solder attachment 4 hole flange mount solder cup terminal, .500 inch
                   threaded hole spacing is part of our full line of RF components available for same-day shipping. This BNC Twinax 4 hole flange
                   connector allows designers to create external connections on their product enclosures, and can be used in a variety of other
                   rack mount and panel mount applications.
                   Our 78 ohm BNC Twinax jack 4 hole flange connector PE4324 datasheet specifications and drawing with dimensions are
                   shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
                   configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
                   or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
                   expertly build your custom cable connector assemblies for you and ship same-day.

                   Mechanical Specifications

                       Size
                       Length                                            1.03 in [26.16 mm]
                       Width/Dia.                                        0.687 in [17.45 mm]
                       Height                                            0.687 in [17.45 mm]
                       .
                       Weight                                            0.013 lbs [5.9 g]
                       .
                       Material Specifications
                            Description                       Material                      Plating
                       Contact                                                               Silver
                                                                                           QQ-S-365
                       Insulation                               PTFE
                       Body                                     Brass                       Nickel
                                                                                           QQ-N-290
                       .


                      Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
                      inventory and certifications: BNC Twinax Jack Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal,
                      .500 inch Threaded Hole Spacing PE4324






                                                        PE4324  REV 1.1                                                1
