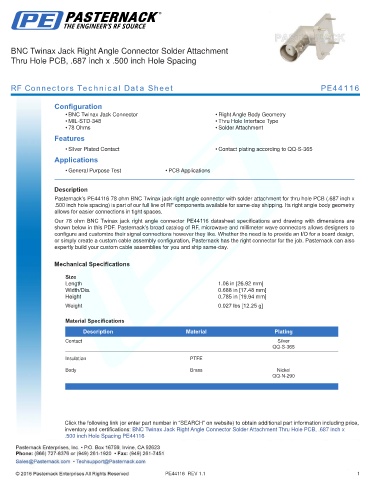

BNC Twinax Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .687 inch x .500 inch Hole Spacing

RF Connectors Technical Data Sheet PE44116

Configuration
• BNC Twinax Jack Connector • Right Angle Body Geometry
• MIL-STD-348 • Thru Hole Interface Type
• 78 Ohms • Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE44116 78 ohm BNC Twinax jack right angle connector with solder attachment for thru hole PCB (.687 inch x
.500 inch hole spacing) is part of our full line of RF components available for same-day shipping. Its right angle body geometry
allows for easier connections in tight spaces.
Our 78 ohm BNC Twinax jack right angle connector PE44116 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.06 in [26.92 mm]
Width/Dia. 0.688 in [17.48 mm]
Height 0.785 in [19.94 mm]
.
Weight 0.027 lbs [12.25 g]
.
Material Specifications

Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Jack Right Angle Connector Solder Attachment Thru Hole PCB, .687 inch x
.500 inch Hole Spacing PE44116

PE44116 REV 1.1 1
