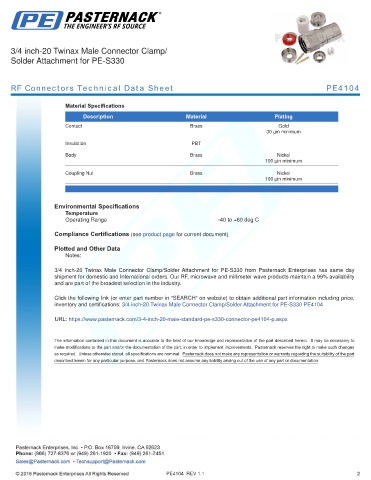

3/4 inch-20 Twinax Male Connector Clamp/
Solder Attachment for PE-S330

RF Connectors Technical Data Sheet PE4104

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PBT
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

3/4 inch-20 Twinax Male Connector Clamp/Solder Attachment for PE-S330 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3/4 inch-20 Twinax Male Connector Clamp/Solder Attachment for PE-S330 PE4104

URL: https://www.pasternack.com/3-4-inch-20-male-standard-pe-s330-connector-pe4104-p.aspx

PE4104 REV 1.1 2
