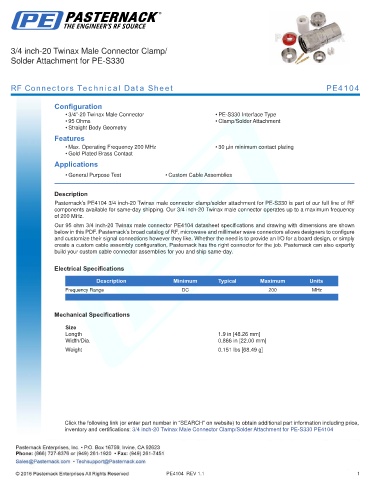

3/4 inch-20 Twinax Male Connector Clamp/
Solder Attachment for PE-S330

RF Connectors Technical Data Sheet PE4104

Configuration
• 3/4”-20 Twinax Male Connector • PE-S330 Interface Type
• 95 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 200 MHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4104 3/4 inch-20 Twinax male connector clamp/solder attachment for PE-S330 is part of our full line of RF
components available for same-day shipping. Our 3/4 inch-20 Twinax male connector operates up to a maximum frequency
of 200 MHz.
Our 95 ohm 3/4 inch-20 Twinax male connector PE4104 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 200 MHz
.

Mechanical Specifications

Size
Length 1.9 in [48.26 mm]
Width/Dia. 0.866 in [22.00 mm]
.
Weight 0.151 lbs [68.49 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3/4 inch-20 Twinax Male Connector Clamp/Solder Attachment for PE-S330 PE4104

PE4104 REV 1.1 1
