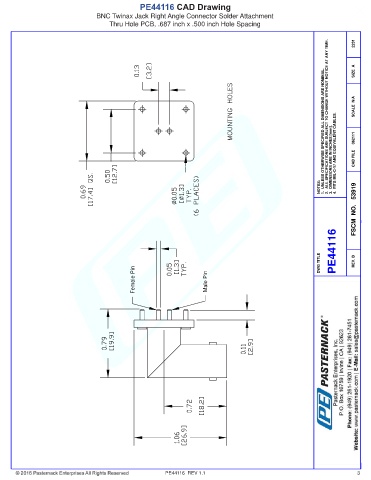

PE44116 CAD Drawing
BNC Twinax Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .687 inch x .500 inch Hole Spacing
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2231
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062111 CAD FILE
NOTES:
FSCM NO. 53919
PE44116
DWG TITLE REV. B
Female Pin Male Pin
PE44116 REV 1.1 3
