3/4 inch-20 Twinax Female Connector Clamp/
Solder Attachment for PE-S330

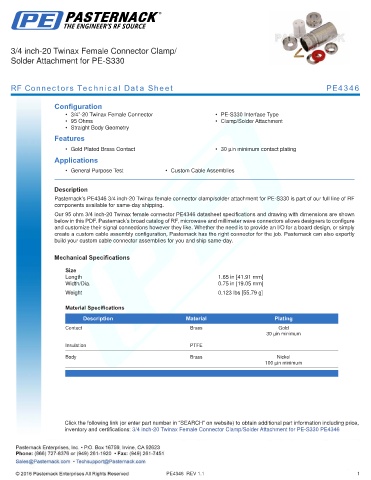

RF Connectors Technical Data Sheet PE4346

Configuration
• 3/4”-20 Twinax Female Connector • PE-S330 Interface Type
• 95 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4346 3/4 inch-20 Twinax female connector clamp/solder attachment for PE-S330 is part of our full line of RF
components available for same-day shipping.
Our 95 ohm 3/4 inch-20 Twinax female connector PE4346 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.65 in [41.91 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.123 lbs [55.79 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE

Body Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3/4 inch-20 Twinax Female Connector Clamp/Solder Attachment for PE-S330 PE4346

PE4346 REV 1.1 1
