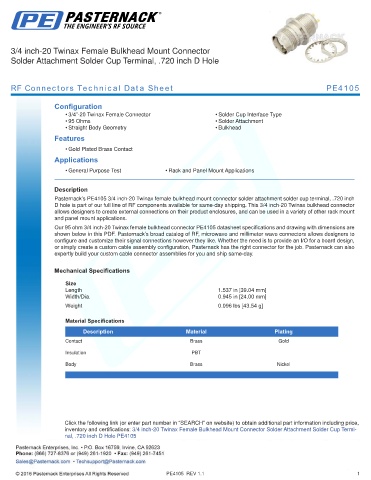

3/4 inch-20 Twinax Female Bulkhead Mount Connector
Solder Attachment Solder Cup Terminal, .720 inch D Hole

RF Connectors Technical Data Sheet PE4105

Configuration
• 3/4”-20 Twinax Female Connector • Solder Cup Interface Type
• 95 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4105 3/4 inch-20 Twinax female bulkhead mount connector solder attachment solder cup terminal, .720 inch
D hole is part of our full line of RF components available for same-day shipping. This 3/4 inch-20 Twinax bulkhead connector
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
Our 95 ohm 3/4 inch-20 Twinax female bulkhead connector PE4105 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.537 in [39.04 mm]
Width/Dia. 0.945 in [24.00 mm]
.
Weight 0.096 lbs [43.54 g]
.
Material Specifications

Description Material Plating
Contact Brass Gold
Insulation PBT
Body Brass Nickel

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3/4 inch-20 Twinax Female Bulkhead Mount Connector Solder Attachment Solder Cup Termi-
nal, .720 inch D Hole PE4105

PE4105 REV 1.1 1
