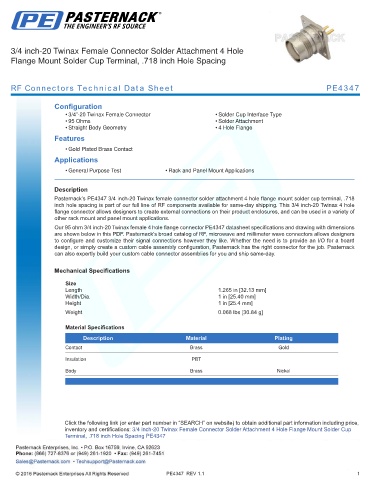

3/4 inch-20 Twinax Female Connector Solder Attachment 4 Hole
Flange Mount Solder Cup Terminal, .718 inch Hole Spacing

RF Connectors Technical Data Sheet PE4347

Configuration
• 3/4”-20 Twinax Female Connector • Solder Cup Interface Type
• 95 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4347 3/4 inch-20 Twinax female connector solder attachment 4 hole flange mount solder cup terminal, .718
inch hole spacing is part of our full line of RF components available for same-day shipping. This 3/4 inch-20 Twinax 4 hole
flange connector allows designers to create external connections on their product enclosures, and can be used in a variety of
other rack mount and panel mount applications.
Our 95 ohm 3/4 inch-20 Twinax female 4 hole flange connector PE4347 datasheet specifications and drawing with dimensions
are shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers
to configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board
design, or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack
can also expertly build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.265 in [32.13 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.068 lbs [30.84 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PBT

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3/4 inch-20 Twinax Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup
Terminal, .718 inch Hole Spacing PE4347

PE4347 REV 1.1 1
