Banana Plug Connector Crimp/Solder
Attachment for RG188-DS, RG316-DS

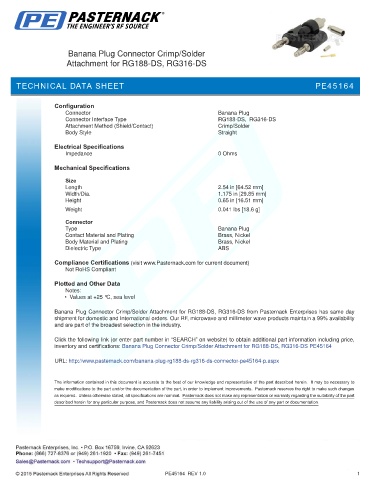

TECHNICAL DATA SHEET PE45164

Configuration
Connector Banana Plug
Connector Interface Type RG188-DS, RG316-DS
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight

Electrical Specifications
Impedance 0 Ohms

Mechanical Specifications
Size
Length 2.54 in [64.52 mm]
Width/Dia. 1.175 in [29.85 mm]
Height 0.65 in [16.51 mm]
.
Weight 0.041 lbs [18.6 g]
Connector
Type Banana Plug
Contact Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type ABS

Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant

Plotted and Other Data
Notes:
• Values at +25 °C, sea level

Banana Plug Connector Crimp/Solder Attachment for RG188-DS, RG316-DS from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Banana Plug Connector Crimp/Solder Attachment for RG188-DS, RG316-DS PE45164

URL: http://www.pasternack.com/banana-plug-rg188-ds-rg316-ds-connector-pe45164-p.aspx

PE45164 REV 1.0 1
