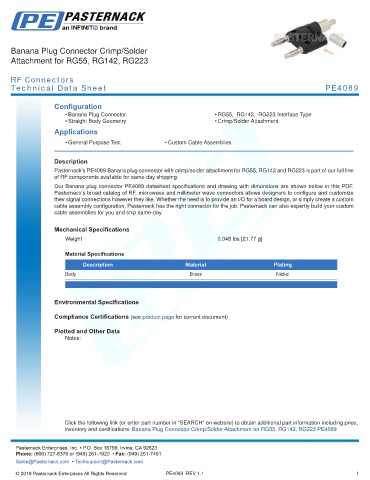

Page 1192 - TNC to Double Banana RF Connector Datasheets

Banana Plug Connector Crimp/Solder
Attachment for RG55, RG142, RG223

RF Connectors
Technical Data Sheet PE4089

Configuration
• Banana Plug Connector • RG55, RG142, RG223 Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4089 Banana plug connector with crimp/solder attachment for RG55, RG142 and RG223 is part of our full line
of RF components available for same-day shipping.
Our Banana plug connector PE4089 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
.
Weight 0.048 lbs [21.77 g]
.
Material Specifications
Description Material Plating
Body Brass Nickel
.

Environmental Specifications

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Banana Plug Connector Crimp/Solder Attachment for RG55, RG142, RG223 PE4089 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4089 REV 1.1 1
