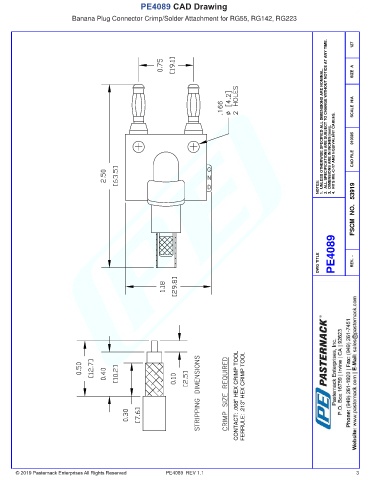

PE4089 CAD Drawing
Banana Plug Connector Crimp/Solder Attachment for RG55, RG142, RG223
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 010305 CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4089 REV. -
CONTACT: .068" HEX CRIMP TOOL FERRULE: .213" HEX CRIMP TOOL
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
PE4089 REV 1.1 3
