Double Banana Plug Connector Crimp/Solder Attachment for
PE-C195, PE-P195, RG58, RG141, RG303, LMR-195, .195 inch

RF Connectors

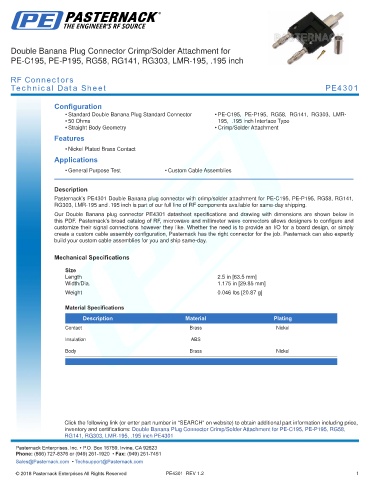

Technical Data Sheet PE4301

Configuration
• Standard Double Banana Plug Standard Connector • PE-C195, PE-P195, RG58, RG141, RG303, LMR-
• 50 Ohms 195, .195 inch Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Nickel Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4301 Double Banana plug connector with crimp/solder attachment for PE-C195, PE-P195, RG58, RG141,
RG303, LMR-195 and .195 inch is part of our full line of RF components available for same-day shipping.
Our Double Banana plug connector PE4301 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 2.5 in [63.5 mm]
Width/Dia. 1.175 in [29.85 mm]
.
Weight 0.046 lbs [20.87 g]
.
Material Specifications
Description Material Plating
Contact Brass Nickel
Insulation ABS

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Double Banana Plug Connector Crimp/Solder Attachment for PE-C195, PE-P195, RG58, -
RG141, RG303, LMR-195, .195 inch PE4301 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4301 REV 1.2 1
