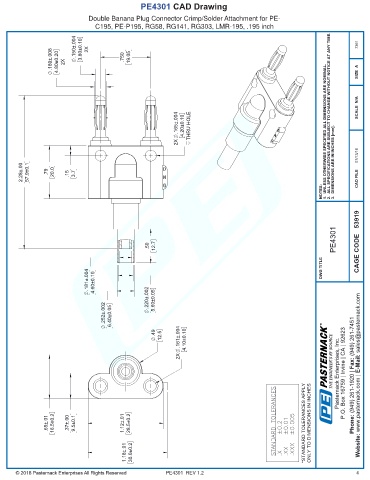

PE4301 CAD Drawing
Double Banana Plug Connector Crimp/Solder Attachment for PE-
C195, PE-P195, RG58, RG141, RG303, LMR-195, .195 inch

.150±.004 3.80±0.10 2X 7361

.189±.008 4.80±0.20 2X .750 19.05 SIZE A

SCALE N/A

.165±.004 4.20±0.10 THRU HOLE 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

2X

3. DIMENSIONS ARE IN INCHES [mm]. 07/13/18
2.28±.00 57.9±0.1 .79 20.0 .15 3.7 CAD FILE

NOTES:

PE4301
.50 12.7 CAGE CODE 53919

DWG TITLE

.181±.004 4.60±0.10

.252±.002 6.40±0.05 .220±.002 5.60±0.05

P.O. Box 16759 | Irvine | CA | 92623
.49 12.5 .161±.004 4.10±0.10 R
THE ENGINEER'S RF SOURCE
Pasternack Enterprises, Inc.
2X Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

.XXX ±0.005
.65±.01 16.5±0.2 .37±.00 9.5±0.1 1.12±.01 28.5±0.2 STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
.XX ±0.01

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

.X ±0.2
1.18±.01 30.0±0.2

PE4301 REV 1.2 4
