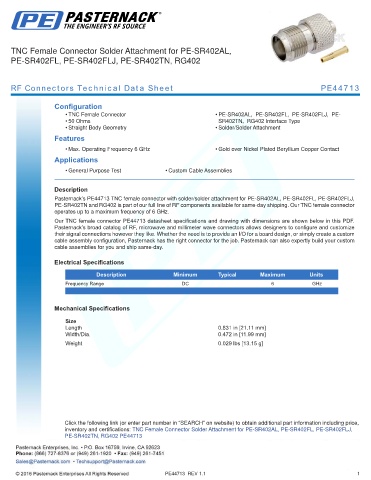

TNC Female Connector Solder Attachment for PE-SR402AL,
PE-SR402FL, PE-SR402FLJ, PE-SR402TN, RG402

RF Connectors Technical Data Sheet PE44713

Configuration
• TNC Female Connector • PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
• 50 Ohms SR402TN, RG402 Interface Type
• Straight Body Geometry • Solder/Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44713 TNC female connector with solder/solder attachment for PE-SR402AL, PE-SR402FL, PE-SR402FLJ,
PE-SR402TN and RG402 is part of our full line of RF components available for same-day shipping. Our TNC female connector
operates up to a maximum frequency of 6 GHz.
Our TNC female connector PE44713 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
.

Mechanical Specifications

Size
Length 0.831 in [21.11 mm]
Width/Dia. 0.472 in [11.99 mm]
.
Weight 0.029 lbs [13.15 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-SR402FLJ,
PE-SR402TN, RG402 PE44713

PE44713 REV 1.1 1
