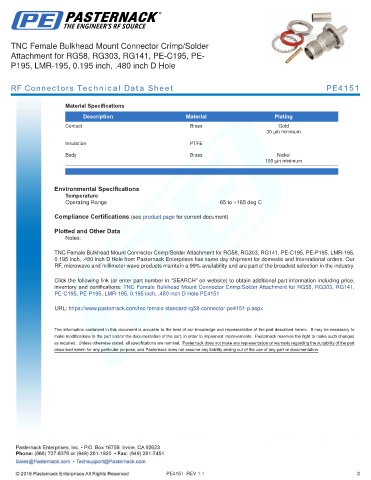

TNC Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG58, RG303, RG141, PE-C195, PE-
P195, LMR-195, 0.195 inch, .480 inch D Hole

RF Connectors Technical Data Sheet PE4151

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

TNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195, PE-P195, LMR-195,
0.195 inch, .480 inch D Hole from Pasternack Enterprises has same day shipment for domestic and International orders. Our
RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG58, RG303, RG141,
PE-C195, PE-P195, LMR-195, 0.195 inch, .480 inch D Hole PE4151

URL: https://www.pasternack.com/tnc-female-standard-rg58-connector-pe4151-p.aspx

PE4151 REV 1.1 2
