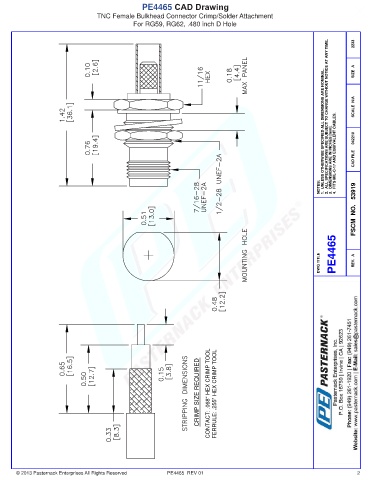

PE4465 CAD Drawing
TNC Female Bulkhead Connector Crimp/Solder Attachment
For RG59, RG62, .480 inch D Hole

2233
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042210 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4465 REV. A

CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .255" HEX CRIMP TOOL

© 2013 Pasternack Enterprises All Rights Reserved PE4465 REV 01 2
