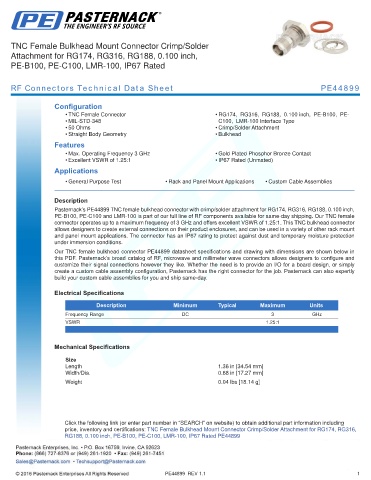

TNC Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG174, RG316, RG188, 0.100 inch,
PE-B100, PE-C100, LMR-100, IP67 Rated

RF Connectors Technical Data Sheet PE44899

Configuration
• TNC Female Connector • RG174, RG316, RG188, 0.100 inch, PE-B100, PE-
• MIL-STD-348 C100, LMR-100 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 3 GHz • Gold Plated Phosphor Bronze Contact
• Excellent VSWR of 1.25:1 • IP67 Rated (Unmated)
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44899 TNC female bulkhead connector with crimp/solder attachment for RG174, RG316, RG188, 0.100 inch,
PE-B100, PE-C100 and LMR-100 is part of our full line of RF components available for same-day shipping. Our TNC female
connector operates up to a maximum frequency of 3 GHz and offers excellent VSWR of 1.25:1. This TNC bulkhead connector
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications. The connector has an IP67 rating to protect against dust and temporary moisture protection
under immersion conditions.
Our TNC female bulkhead connector PE44899 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.25:1
.

Mechanical Specifications
Size
Length 1.36 in [34.54 mm]
Width/Dia. 0.68 in [17.27 mm]
.
Weight 0.04 lbs [18.14 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: TNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316,
RG188, 0.100 inch, PE-B100, PE-C100, LMR-100, IP67 Rated PE44899

PE44899 REV 1.1 1
