TNC Female Bulkhead Connector Crimp/Solder
Attachment For RG59, RG62, .480 inch D Hole

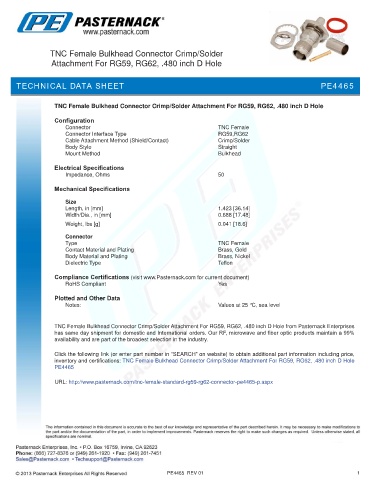

TECHNICAL DATA SHEET PE4465

TNC Female Bulkhead Connector Crimp/Solder Attachment For RG59, RG62, .480 inch D Hole

Configuration
Connector TNC Female
Connector Interface Type RG59,RG62
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.423 [36.14]
Width/Dia., in [mm] 0.688 [17.48]
.
Weight, lbs [g] 0.041 [18.6]
Connector
Type TNC Female
Contact Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

TNC Female Bulkhead Connector Crimp/Solder Attachment For RG59, RG62, .480 inch D Hole from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Connector Crimp/Solder Attachment For RG59, RG62, .480 inch D Hole
PE4465

URL: http://www.pasternack.com/tnc-female-standard-rg59-rg62-connector-pe4465-p.aspx

PE4465 REV 01 1
