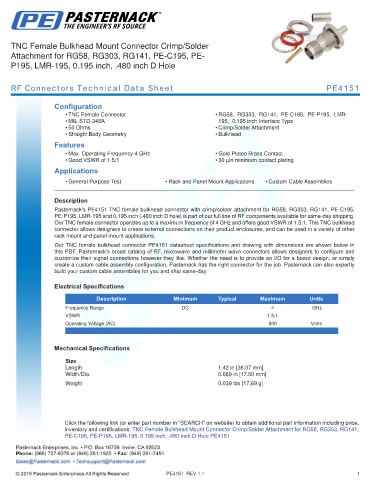

TNC Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG58, RG303, RG141, PE-C195, PE-
P195, LMR-195, 0.195 inch, .480 inch D Hole

RF Connectors Technical Data Sheet PE4151

Configuration
• TNC Female Connector • RG58, RG303, RG141, PE-C195, PE-P195, LMR-
• MIL-STD-348A 195, 0.195 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4151 TNC female bulkhead connector with crimp/solder attachment for RG58, RG303, RG141, PE-C195,
PE-P195, LMR-195 and 0.195 inch (.480 inch D hole) is part of our full line of RF components available for same-day shipping.
Our TNC female connector operates up to a maximum frequency of 4 GHz and offers good VSWR of 1.5:1. This TNC bulkhead
connector allows designers to create external connections on their product enclosures, and can be used in a variety of other
rack mount and panel mount applications.
Our TNC female bulkhead connector PE4151 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.42 in [36.07 mm]
Width/Dia. 0.689 in [17.50 mm]
.
Weight 0.039 lbs [17.69 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG58, RG303, RG141,
PE-C195, PE-P195, LMR-195, 0.195 inch, .480 inch D Hole PE4151

PE4151 REV 1.1 1
