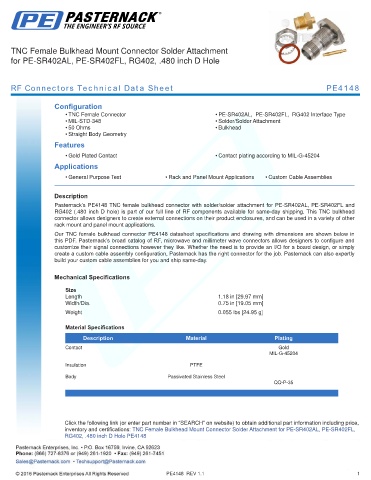

TNC Female Bulkhead Mount Connector Solder Attachment
for PE-SR402AL, PE-SR402FL, RG402, .480 inch D Hole

RF Connectors Technical Data Sheet PE4148

Configuration
• TNC Female Connector • PE-SR402AL, PE-SR402FL, RG402 Interface Type
• MIL-STD-348 • Solder/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4148 TNC female bulkhead connector with solder/solder attachment for PE-SR402AL, PE-SR402FL and
RG402 (.480 inch D hole) is part of our full line of RF components available for same-day shipping. This TNC bulkhead
connector allows designers to create external connections on their product enclosures, and can be used in a variety of other
rack mount and panel mount applications.
Our TNC female bulkhead connector PE4148 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.18 in [29.97 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.055 lbs [24.95 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204

Insulation PTFE
Body Passivated Stainless Steel
QQ-P-35
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Solder Attachment for PE-SR402AL, PE-SR402FL,
RG402, .480 inch D Hole PE4148

PE4148 REV 1.1 1
