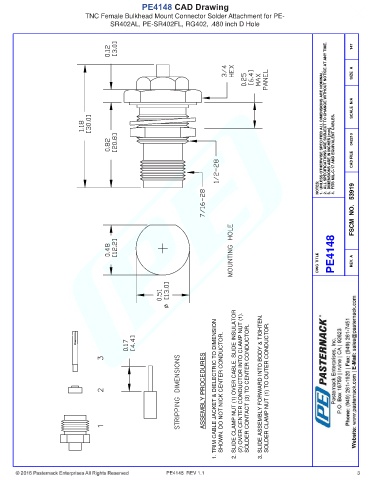

PE4148 CAD Drawing
TNC Female Bulkhead Mount Connector Solder Attachment for PE-
SR402AL, PE-SR402FL, RG402, .480 inch D Hole
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042210 CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4148 REV. A
ASSEMBLY PROCEDURES 1. TRIM CABLE JACKET & DIELECTRIC TO DIMENSION SHOWN. DO NOT NICK CENTER CONDUCTOR. 2. SLIDE CLAMP NUT (1) OVER CABLE. SLIDE INSULATOR (2) OVER CENTER CONDUCTOR INTO CLAMP NUT (1). SOLDER CONTACT (3) TO CENTER CONDUCTOR. 3. SLIDE ASSEMBLY FORWARD INTO BODY & TIGHTEN. SOLDER CLAMP NUT (1) TO OUTER CONDUCTOR.
PE4148 REV 1.1 3
