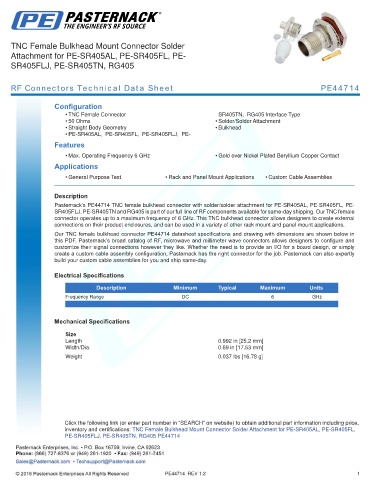

TNC Female Bulkhead Mount Connector Solder
Attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ, PE-SR405TN, RG405

RF Connectors Technical Data Sheet PE44714

Configuration
• TNC Female Connector SR405TN, RG405 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Straight Body Geometry • Bulkhead
• PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
Features
• Max. Operating Frequency 6 GHz • Gold over Nickel Plated Beryllium Copper Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44714 TNC female bulkhead connector with solder/solder attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ, PE-SR405TN and RG405 is part of our full line of RF components available for same-day shipping. Our TNC female
connector operates up to a maximum frequency of 6 GHz. This TNC bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our TNC female bulkhead connector PE44714 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
.

Mechanical Specifications
Size
Length 0.992 in [25.2 mm]
Width/Dia. 0.69 in [17.53 mm]
.
Weight 0.037 lbs [16.78 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Solder Attachment for PE-SR405AL, PE-SR405FL,
PE-SR405FLJ, PE-SR405TN, RG405 PE44714

PE44714 REV 1.2 1
