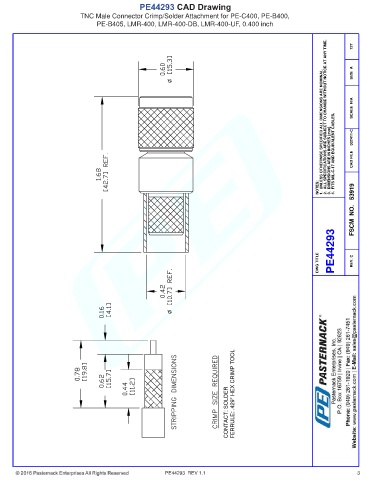

PE44293 CAD Drawing
TNC Male Connector Crimp/Solder Attachment for PE-C400, PE-B400,
PE-B405, LMR-400, LMR-400-DB, LMR-400-UF, 0.400 inch

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 032411-C CAD FILE

NOTES:
FSCM NO. 53919

PE44293

DWG TITLE REV. C

CONTACT: SOLDER FERRULE: .429" HEX CRIMP TOOL

PE44293 REV 1.1 3
