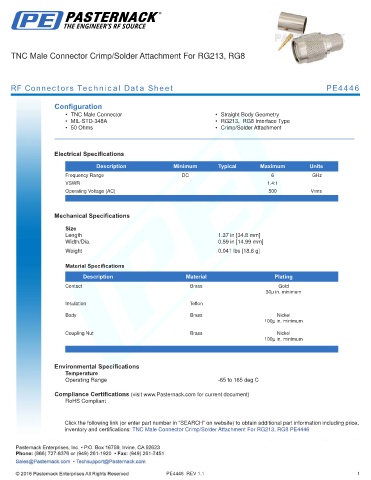

TNC Male Connector Crimp/Solder Attachment For RG213, RG8
RF Connectors Technical Data Sheet PE4446
Configuration
• TNC Male Connector • Straight Body Geometry
• MIL-STD-348A • RG213, RG8 Interface Type
• 50 Ohms • Crimp/Solder Attachment
.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.4:1
Operating Voltage (AC) 500 Vrms
.
Mechanical Specifications
Size
Length 1.37 in [34.8 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30µ in. minimum
Insulation Teflon
Body Brass Nickel
100µ in. minimum
Coupling Nut Brass Nickel
100µ in. minimum
.
Environmental Specifications
Temperature
Operating Range -65 to 165 deg C
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Crimp/Solder Attachment For RG213, RG8 PE4446
PE4446 REV 1.1 1
