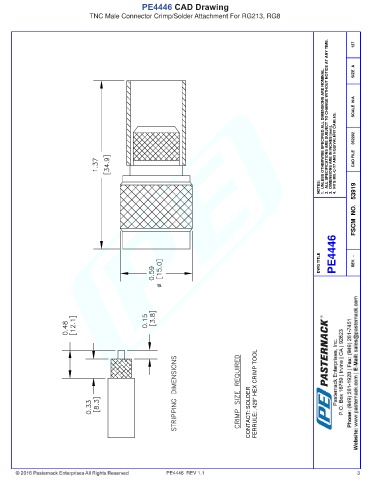

PE4446 CAD Drawing
TNC Male Connector Crimp/Solder Attachment For RG213, RG8
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052202 CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4446 REV. -
CONTACT: SOLDER FERRULE: .429" HEX CRIMP TOOL
