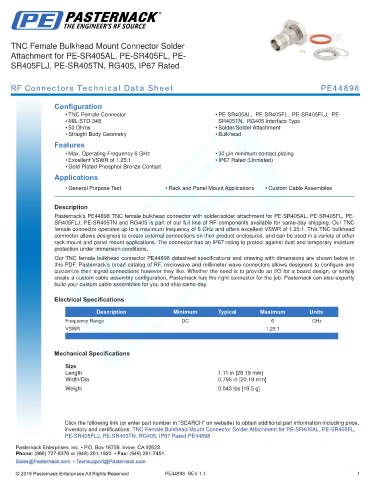

TNC Female Bulkhead Mount Connector Solder
Attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ, PE-SR405TN, RG405, IP67 Rated

RF Connectors Technical Data Sheet PE44898

Configuration
• TNC Female Connector • PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
• MIL-STD-348 SR405TN, RG405 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 6 GHz • 30 µin minimum contact plating
• Excellent VSWR of 1.25:1 • IP67 Rated (Unmated)
• Gold Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44898 TNC female bulkhead connector with solder/solder attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ, PE-SR405TN and RG405 is part of our full line of RF components available for same-day shipping. Our TNC
female connector operates up to a maximum frequency of 6 GHz and offers excellent VSWR of 1.25:1. This TNC bulkhead
connector allows designers to create external connections on their product enclosures, and can be used in a variety of other
rack mount and panel mount applications. The connector has an IP67 rating to protect against dust and temporary moisture
protection under immersion conditions.
Our TNC female bulkhead connector PE44898 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.25:1
.

Mechanical Specifications

Size
Length 1.11 in [28.19 mm]
Width/Dia. 0.795 in [20.19 mm]
.
Weight 0.043 lbs [19.5 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Solder Attachment for PE-SR405AL, PE-SR405FL,
PE-SR405FLJ, PE-SR405TN, RG405, IP67 Rated PE44898

PE44898 REV 1.1 1
