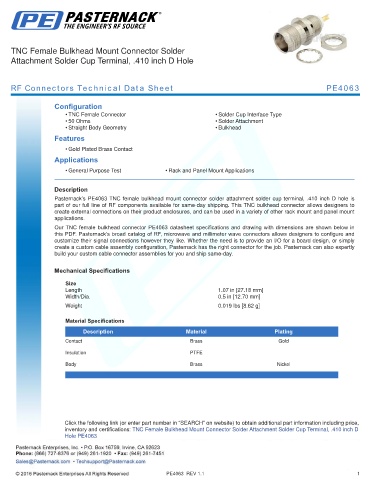

TNC Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .410 inch D Hole

RF Connectors Technical Data Sheet PE4063

Configuration
• TNC Female Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4063 TNC female bulkhead mount connector solder attachment solder cup terminal, .410 inch D hole is
part of our full line of RF components available for same-day shipping. This TNC bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our TNC female bulkhead connector PE4063 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.07 in [27.18 mm]
Width/Dia. 0.5 in [12.70 mm]
.
Weight 0.019 lbs [8.62 g]
.
Material Specifications

Description Material Plating
Contact Brass Gold
Insulation PTFE
Body Brass Nickel

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .410 inch D
Hole PE4063

PE4063 REV 1.1 1
