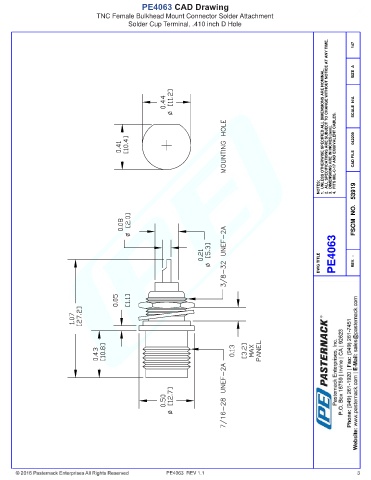

PE4063 CAD Drawing
TNC Female Bulkhead Mount Connector Solder Attachment
Solder Cup Terminal, .410 inch D Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042209 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4063 REV. -

PE4063 REV 1.1 3
