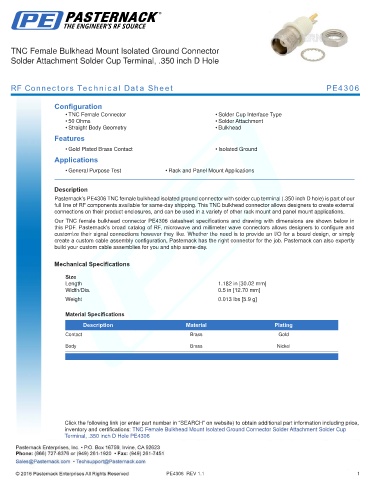

TNC Female Bulkhead Mount Isolated Ground Connector
Solder Attachment Solder Cup Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4306

Configuration
• TNC Female Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Gold Plated Brass Contact • Isolated Ground
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4306 TNC female bulkhead isolated ground connector with solder cup terminal (.350 inch D hole) is part of our
full line of RF components available for same-day shipping. This TNC bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our TNC female bulkhead connector PE4306 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.182 in [30.02 mm]
Width/Dia. 0.5 in [12.70 mm]
.
Weight 0.013 lbs [5.9 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Isolated Ground Connector Solder Attachment Solder Cup
Terminal, .350 inch D Hole PE4306

PE4306 REV 1.1 1
