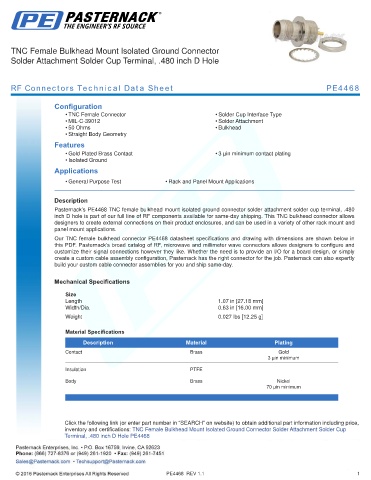

TNC Female Bulkhead Mount Isolated Ground Connector
Solder Attachment Solder Cup Terminal, .480 inch D Hole

RF Connectors Technical Data Sheet PE4468

Configuration
• TNC Female Connector • Solder Cup Interface Type
• MIL-C-39012 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Gold Plated Brass Contact • 3 µin minimum contact plating
• Isolated Ground
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4468 TNC female bulkhead mount isolated ground connector solder attachment solder cup terminal, .480
inch D hole is part of our full line of RF components available for same-day shipping. This TNC bulkhead connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our TNC female bulkhead connector PE4468 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.07 in [27.18 mm]
Width/Dia. 0.63 in [16.00 mm]
.
Weight 0.027 lbs [12.25 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum

Insulation PTFE
Body Brass Nickel
70 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Isolated Ground Connector Solder Attachment Solder Cup
Terminal, .480 inch D Hole PE4468

PE4468 REV 1.1 1
