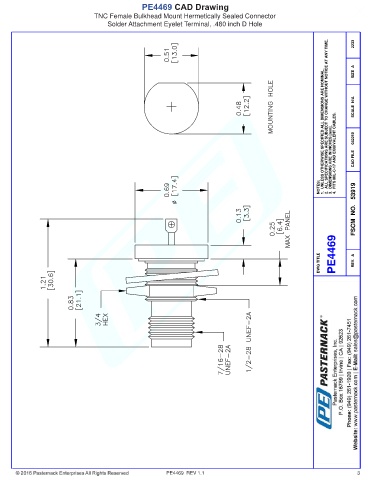

PE4469 CAD Drawing
TNC Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Eyelet Terminal, .480 inch D Hole
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042210 CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4469 REV. A
PE4469 REV 1.1 3
