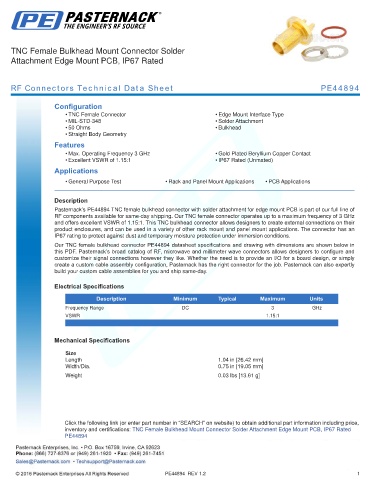

TNC Female Bulkhead Mount Connector Solder
Attachment Edge Mount PCB, IP67 Rated

RF Connectors Technical Data Sheet PE44894

Configuration
• TNC Female Connector • Edge Mount Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 3 GHz • Gold Plated Beryllium Copper Contact
• Excellent VSWR of 1.15:1 • IP67 Rated (Unmated)
Applications

• General Purpose Test • Rack and Panel Mount Applications • PCB Applications
.
Description
Pasternack’s PE44894 TNC female bulkhead connector with solder attachment for edge mount PCB is part of our full line of
RF components available for same-day shipping. Our TNC female connector operates up to a maximum frequency of 3 GHz
and offers excellent VSWR of 1.15:1. This TNC bulkhead connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications. The connector has an
IP67 rating to protect against dust and temporary moisture protection under immersion conditions.
Our TNC female bulkhead connector PE44894 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.15:1
.

Mechanical Specifications

Size
Length 1.04 in [26.42 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.03 lbs [13.61 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Solder Attachment Edge Mount PCB, IP67 Rated
PE44894

PE44894 REV 1.2 1
