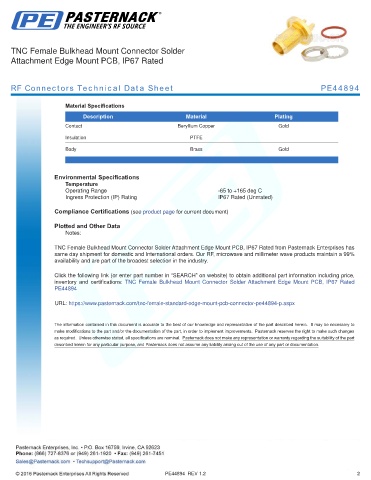

TNC Female Bulkhead Mount Connector Solder
Attachment Edge Mount PCB, IP67 Rated

RF Connectors Technical Data Sheet PE44894

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold

Insulation PTFE
Body Brass Gold
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Ingress Protection (IP) Rating IP67 Rated (Unmated)

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

TNC Female Bulkhead Mount Connector Solder Attachment Edge Mount PCB, IP67 Rated from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Solder Attachment Edge Mount PCB, IP67 Rated
PE44894

URL: https://www.pasternack.com/tnc-female-standard-edge-mount-pcb-connector-pe44894-p.aspx

PE44894 REV 1.2 2
