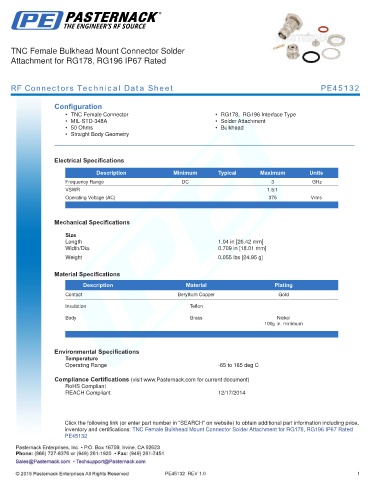

TNC Female Bulkhead Mount Connector Solder
Attachment for RG178, RG196 IP67 Rated
RF Connectors Technical Data Sheet PE45132
Configuration
• TNC Female Connector • RG178, RG196 Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Operating Voltage (AC) 375 Vrms
.
Mechanical Specifications
Size
Length 1.04 in [26.42 mm]
Width/Dia. 0.709 in [18.01 mm]
.
Weight 0.055 lbs [24.95 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation Teflon
Body Brass Nickel
100µ in. minimum
.
Environmental Specifications
Temperature
Operating Range -65 to 165 deg C
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2014
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Solder Attachment for RG178, RG196 IP67 Rated
PE45132
PE45132 REV 1.0 1
