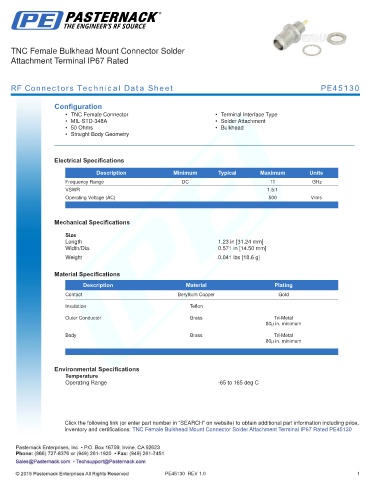

TNC Female Bulkhead Mount Connector Solder
Attachment Terminal IP67 Rated

RF Connectors Technical Data Sheet PE45130

Configuration
• TNC Female Connector • Terminal Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.23 in [31.24 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation Teflon

Outer Conductor Brass Tri-Metal
80µ in. minimum
Body Brass Tri-Metal
80µ in. minimum
.

Environmental Specifications
Temperature
Operating Range -65 to 165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Solder Attachment Terminal IP67 Rated PE45130

PE45130 REV 1.0 1
