RP TNC Male Connector Clamp/Solder
Attachment For PE-B400, PE-B405

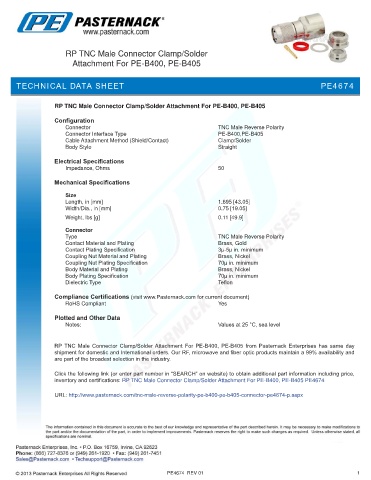

TECHNICAL DATA SHEET PE4674

RP TNC Male Connector Clamp/Solder Attachment For PE-B400, PE-B405

Configuration
Connector TNC Male Reverse Polarity
Connector Interface Type PE-B400,PE-B405
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.695 [43.05]
Width/Dia., in [mm] 0.75 [19.05]
.
Weight, lbs [g] 0.11 [49.9]

Connector
Type TNC Male Reverse Polarity
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ-5µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 70µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP TNC Male Connector Clamp/Solder Attachment For PE-B400, PE-B405 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Clamp/Solder Attachment For PE-B400, PE-B405 PE4674

URL: http://www.pasternack.com/tnc-male-reverse-polarity-pe-b400-pe-b405-connector-pe4674-p.aspx

PE4674 REV 01 1
