RP TNC Male Connector Solder Attachment For
PE-SR405AL, PE-SR405FL, RG405

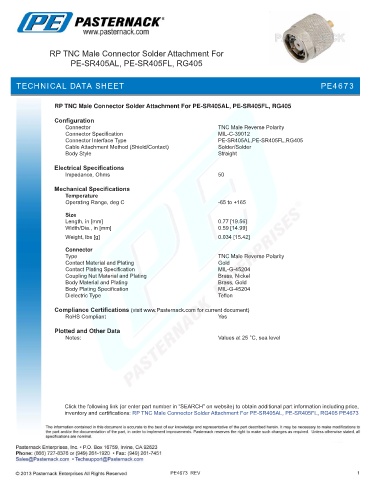

TECHNICAL DATA SHEET PE4673

RP TNC Male Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405

Configuration
Connector TNC Male Reverse Polarity
Connector Specification MIL-C-39012
Connector Interface Type PE-SR405AL,PE-SR405FL,RG405
Cable Attachment Method (Shield/Contact) Solder/Solder
Body Style Straight

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 0.77 [19.56]
Width/Dia., in [mm] 0.59 [14.99]
.
Weight, lbs [g] 0.034 [15.42]
Connector
Type TNC Male Reverse Polarity
Contact Material and Plating Gold
Contact Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Gold
Body Plating Specification MIL-G-45204
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405 PE4673

PE4673 REV 1
