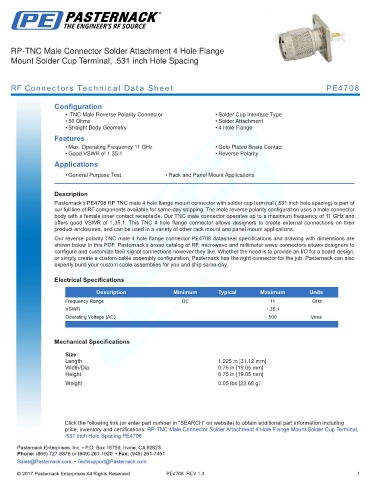

RP-TNC Male Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .531 inch Hole Spacing

RF Connectors Technical Data Sheet PE4708

Configuration
• TNC Male Reverse Polarity Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • Reverse Polarity
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4708 RP TNC male 4 hole flange mount connector with solder cup terminal (.531 inch hole spacing) is part of
our full line of RF components available for same-day shipping. The male reverse polarity configuration uses a male connector
body with a female inner contact receptacle. Our TNC male connector operates up to a maximum frequency of 11 GHz and
offers good VSWR of 1.35:1. This TNC 4 hole flange connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our reverse polarity TNC male 4 hole flange connector PE4708 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications
Size
Length 1.225 in [31.12 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 0.75 in [19.05 mm]
.
Weight 0.05 lbs [22.68 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: RP-TNC Male Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal,
.531 inch Hole Spacing PE4708

PE4708 REV 1.3 1
