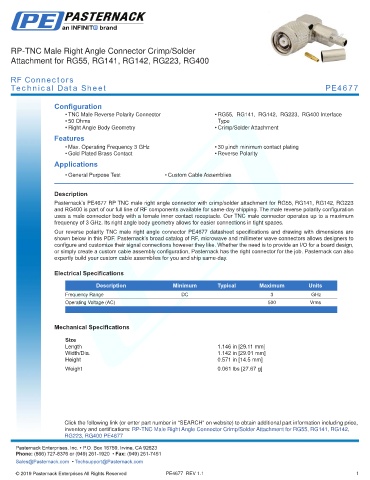

RP-TNC Male Right Angle Connector Crimp/Solder
Attachment for RG55, RG141, RG142, RG223, RG400

RF Connectors
Technical Data Sheet PE4677

Configuration
• TNC Male Reverse Polarity Connector • RG55, RG141, RG142, RG223, RG400 Interface
• 50 Ohms Type
• Right Angle Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 3 GHz • 30 µinch minimum contact plating
• Gold Plated Brass Contact • Reverse Polarity
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4677 RP TNC male right angle connector with crimp/solder attachment for RG55, RG141, RG142, RG223
and RG400 is part of our full line of RF components available for same-day shipping. The male reverse polarity configuration
uses a male connector body with a female inner contact receptacle. Our TNC male connector operates up to a maximum
frequency of 3 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our reverse polarity TNC male right angle connector PE4677 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications
Size
Length 1.146 in [29.11 mm]
Width/Dia. 1.142 in [29.01 mm]
Height 0.571 in [14.5 mm]
.
Weight 0.061 lbs [27.67 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP-TNC Male Right Angle Connector Crimp/Solder Attachment for RG55, RG141, RG142, -
RG223, RG400 PE4677 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4677 REV 1.1 1
